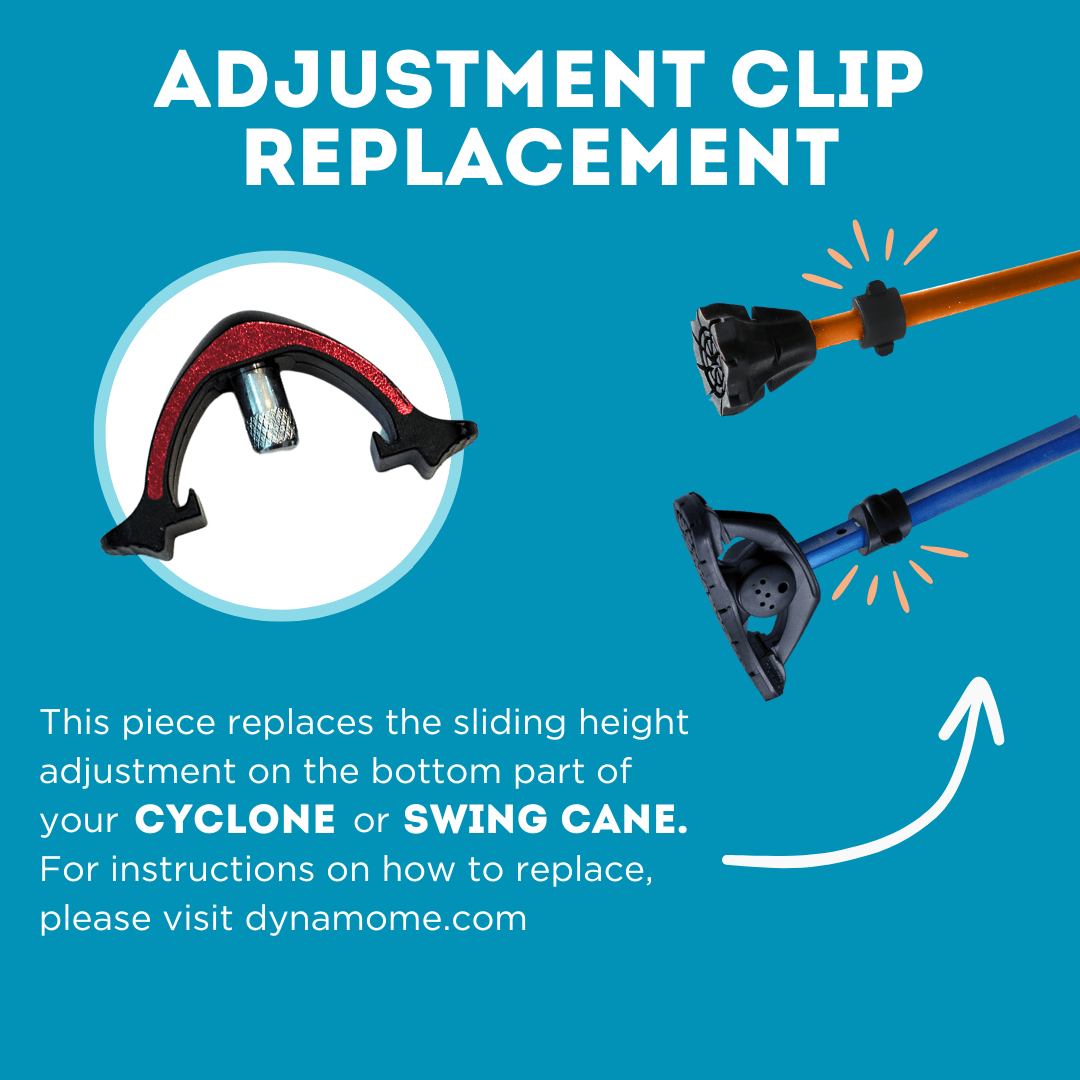

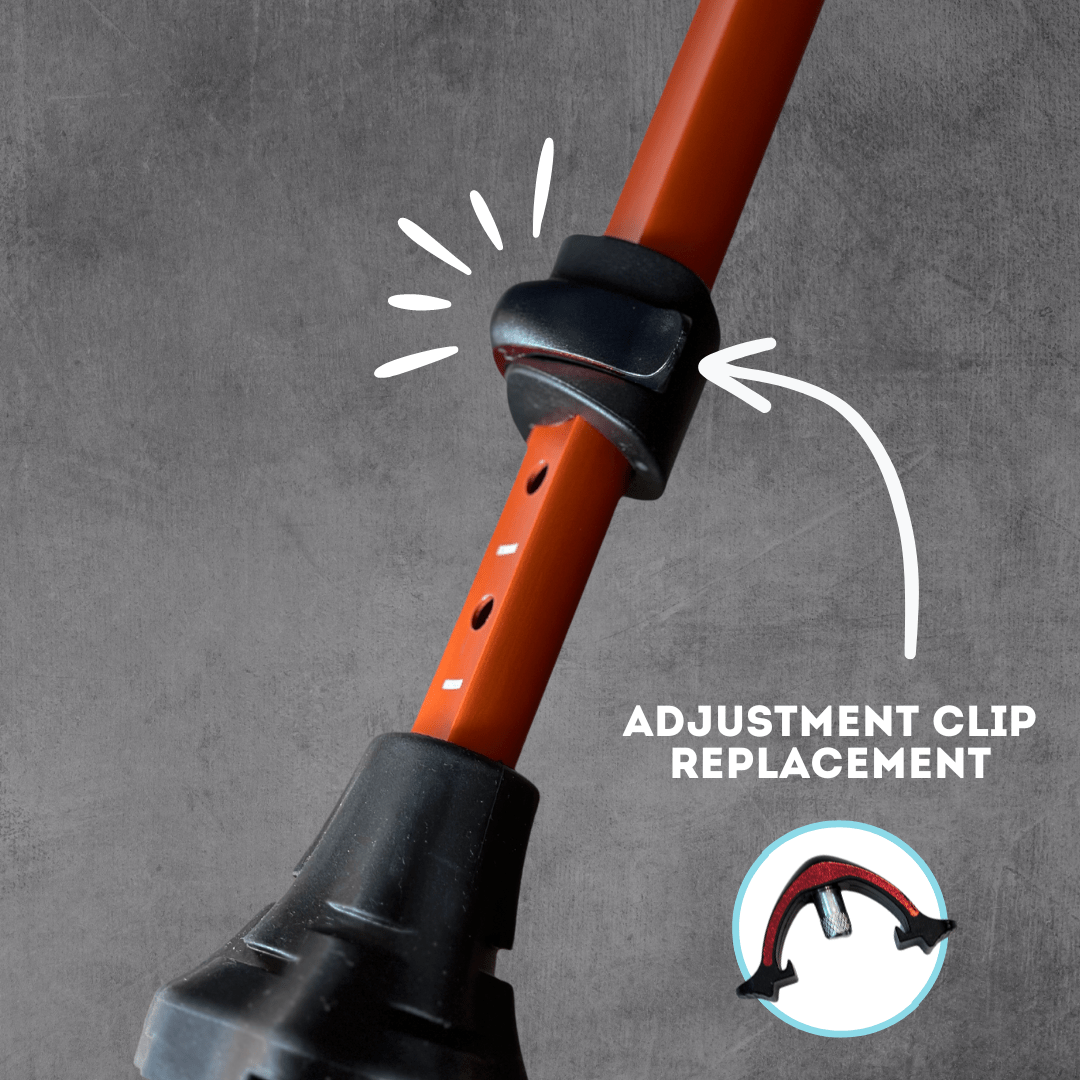

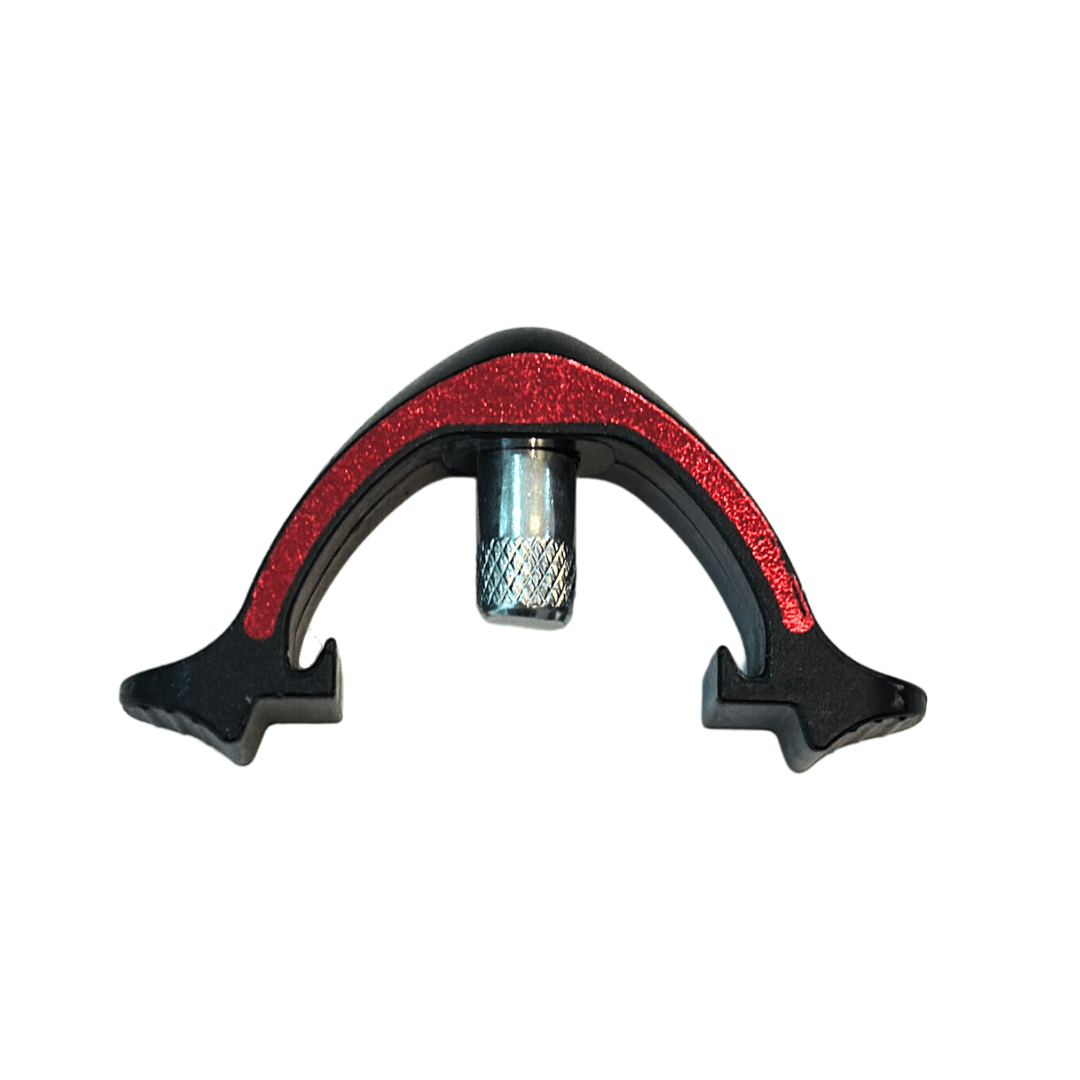

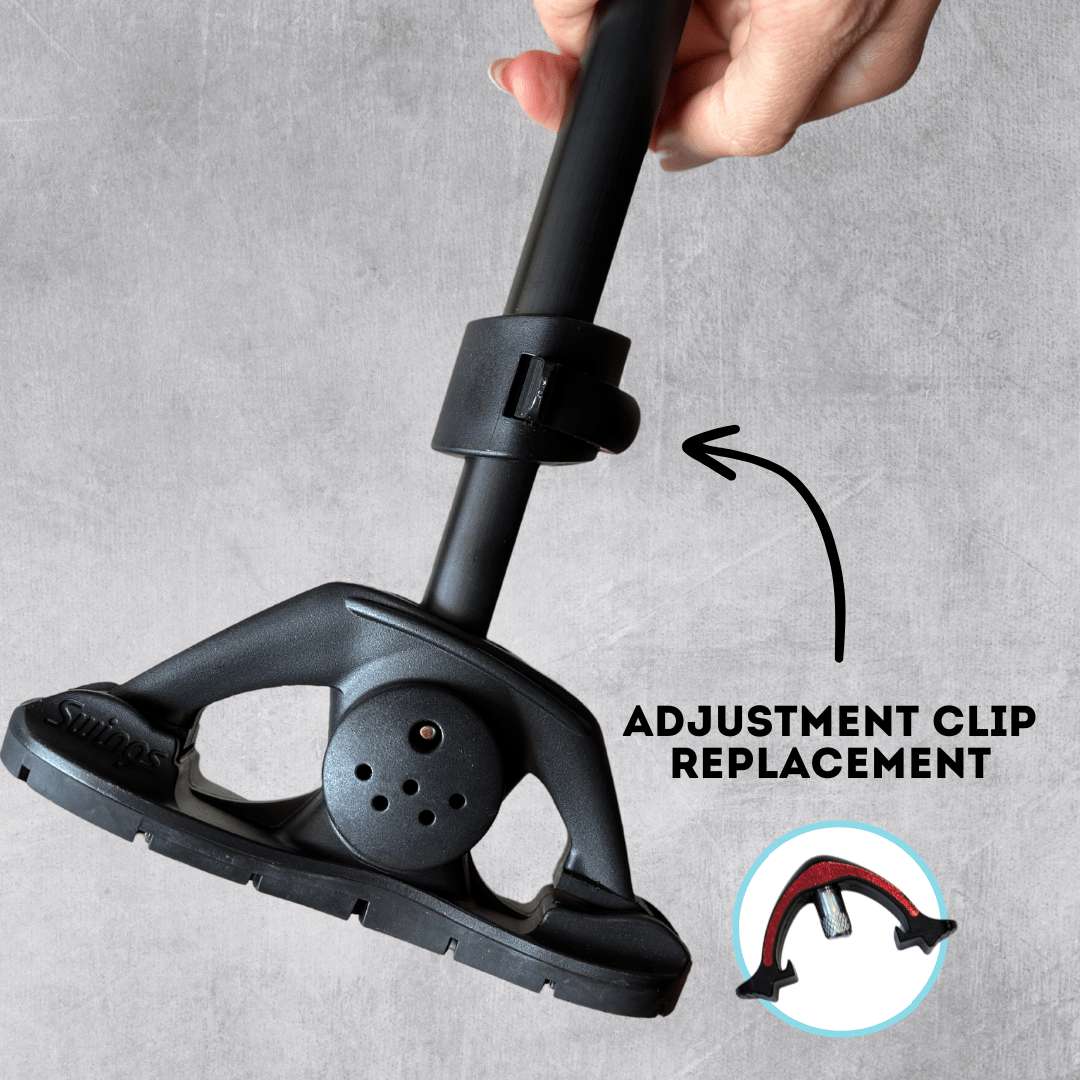

Adjustment Clip Replacement Part (#1260c) 2-PACK

The Dynamo Adjustment Clip is a locking mechanism that secures the cane at the desired height setting. It prevents the cane from collapsing or slipping during use and ensures a safe, stable walking experience.

The Adjustment Clip is only used in:

• Cyclone Cane
• Swing Cane

The GoStick and PrimeStick do not use an adjustment clip, as they have different height adjustment mechanisms.

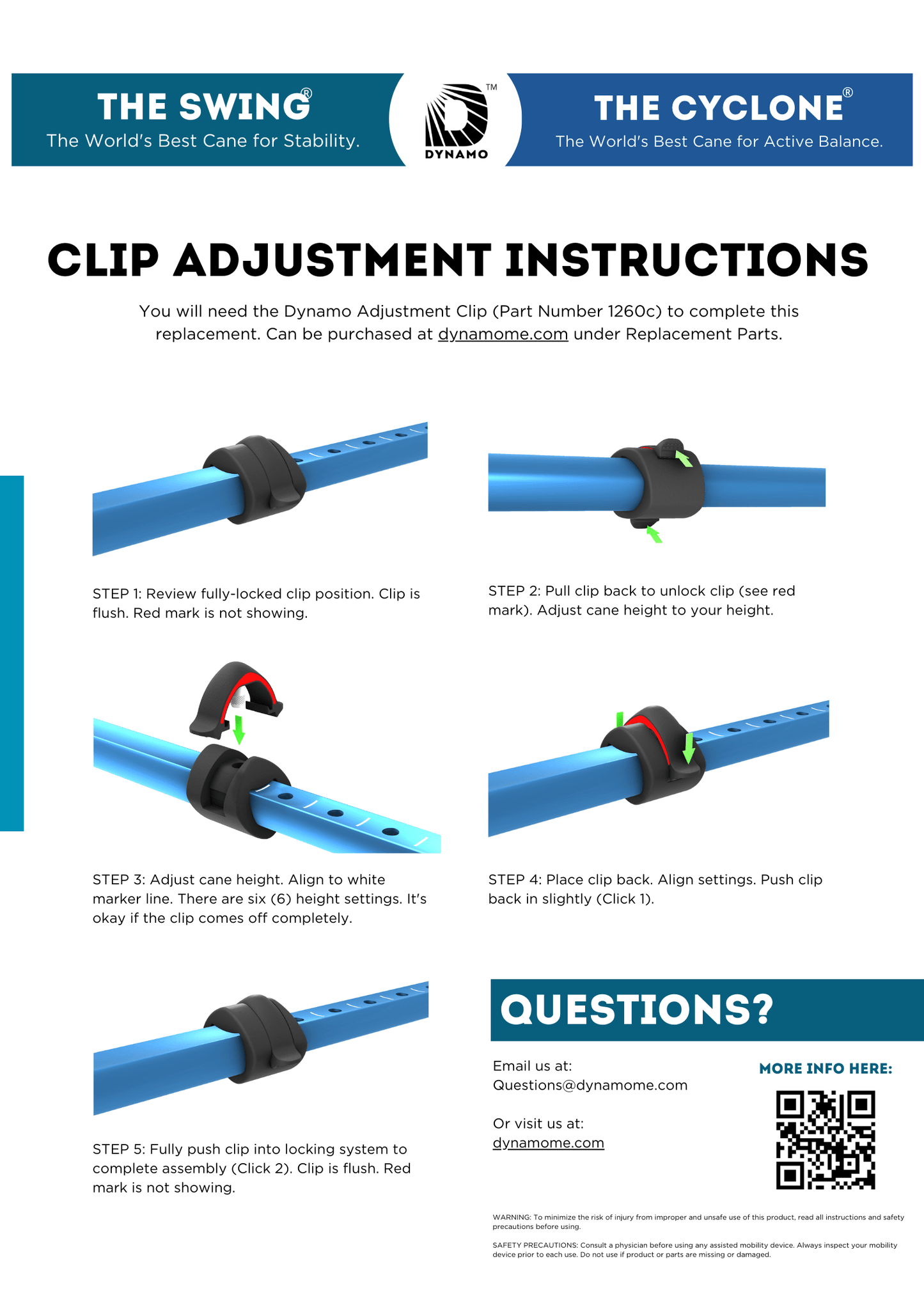

Release the Lower Clip

• Use both thumbs to disengage the adjustment clip from the cane shaft.
• The clip will move slightly, and you will hear a click.
• The Red Caution Indicator will become visible, showing that the clip is disengaged.

Find Your Preferred Height

• Stand naturally and place your palm on the handgrip with your fingers wrapped around it.
• Your elbow should be slightly bent (15-30 degrees) when holding the grip.

Align & Secure the Clip

• Extend or retract the base tube of the cane until it reaches the floor at your preferred height.
• Align the lower clip with the adjustment hole that best matches your preferred height.
• Use the adjustment line indicators on the cane shaft to help position it correctly.

Important: Never use the cane if the clip is disengaged, damaged, missing, or if the Red Caution Indicator is visible. If damaged, contact customer service or purchase a replacement clip at dynamome.com.

Re-Engage the Clip & Verify

• Press the Adjustment Clip fully into place until you hear a click.
• The Red Caution Indicator should no longer be visible, and the clip should be flush with the cane shaft.
• Test the placement by pressing down on the handgrip firmly. If the height shifts, repeat steps 1-4 until the clip is properly engaged.

Over time, the Adjustment Clip may wear out and need replacement. Follow these steps:

1. Remove the old clip completely, ensuring that all pieces, including the peg, are removed from the adjustment holes.
2. Align the new adjustment clip with the cane shaft.
3. Repeat steps 1-4 from the adjustment process to install and properly engage your new clip.

For the best results, only use genuine Dynamo Adjustment Clip replacements, available at dynamome.com.

• Check for cracks or damage. If broken, replace it immediately.
• Ensure the clip is fully locked in place. You should not see the Red Caution Indicator when it is engaged.
• Contact Dynamo support at questions@dynamome.com if you need assistance.

Replacement Adjustment Clips are available at dynamome.com. Using genuine Dynamo clips ensures a proper fit and safe height adjustment.
